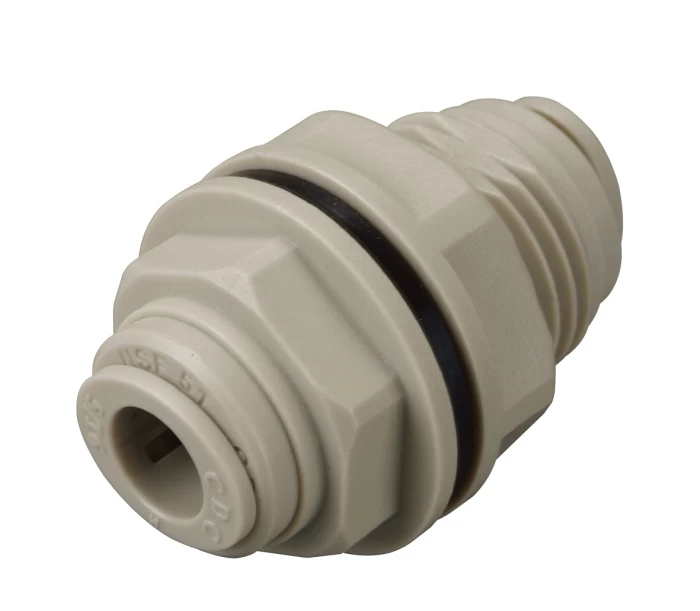

BULKHEAD CONNECTOR 3/8-3/8 - HMM3/8-3/8G

The HMM3/8-3/8G is a Fluid-fit bulkhead connector with two sockets for tubing with outer diameters of Ø3/8" and Ø3/8". It joins tubing on opposite sides of a panel or enclosure, securing the connection at the point where it passes through the panel.

Made from high-quality acetal plastic POM (polyoxymethylene), it incorporates EPDM (ethylene propylene diene monomer rubber) sealing. The two Push-to-connect sockets allow tube insertion without tools at the push-fit connections. The threaded body and nut are used for mechanical mounting through the panel, not as a threaded pipe connection.

The operating temperature range is 0°C to +65°C, with a pressure ceiling of up to 10.3 bar under suitable conditions. The allowable pressure is not the same at every temperature and must be checked against the manufacturer's table and the limits of the connected tubing. Disconnect only after the line has been fully depressurized. Subject to media compatibility and operating conditions, applications include:

• Water treatment systems
• Pneumatic networks, subject to application conditions
• Low-pressure auxiliary circuits in desalination units
• Food and beverage equipment
