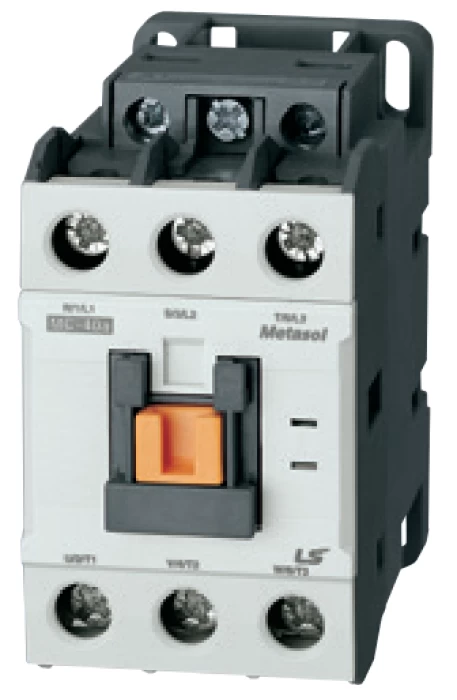

CONTACTOR 3P 15KW 230VAC 1NO1NC MC-32a METASOL LG

Number of poles: 3
Rated operational voltage (Ue): 690V
Rated insulation voltage (Ui): 1000V
Rated frequency: 50/60Hz
Impulse withstand voltage (Uimp): 8kV
Max operations/hour (AC3): 1800
Mechanical endurance: 12 million cycles
Electrical endurance: 2 million cycles
AC-3 rated power at 380/440V: 15kW
Thermal current (Ith): 32A
Weight: ~0.4kg
Dimensions (W×H×D): 45 × 73.5 × 96.6 mm
Terminal type: Screw clamp
Standard auxiliary contact: 1NO or 1NC
Auxiliary contact modules: UA-1 (side), UA-2 / UA-4 (front)
Technical Specs

Code: 07.00041

Availability: Available

30.62€

/ Item

Wishlist

Compare products

Description

The MC-32a by LG Metasol is a 3-pole power contactor designed for heavy industrial switching and control applications. Rated for 15kW at 380/440V, it handles up to 32A thermal current and supports operation voltages up to 690V. With a high impulse withstand voltage of 8kV, and mechanical endurance of 12 million operations, it ensures reliability in high-demand settings.

The MC-32a supports up to 1800 operations/hour (AC3), is available with 1NO or 1NC auxiliary contact, and can be expanded using UA-1 (side) or UA-2 / UA-4 (front) contact modules. Its compact size (45 × 73.5 × 96.6 mm) and robust build make it ideal for use in motor starters, control panels, and industrial automation systems.
