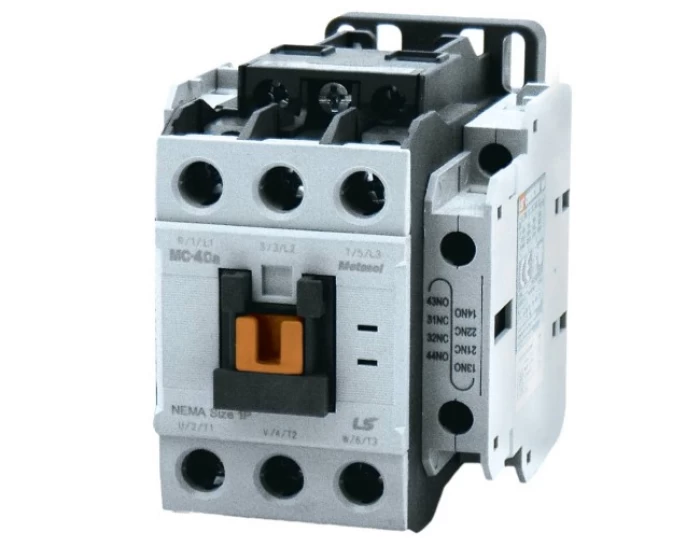

CONTACTOR 3P 18.5KW 230VAC 2NO2NC MC-40a METASOL LG

Type: Power contactor
Poles: 3P
AC-3 Rated Power at 380/440V: 18.5kW
Contacts: 2NO + 2NC (with UA-4 module)
Thermal current (Ith): 40A
Operational voltage (Ue): 690V
Insulation voltage (Ui): 1000V
Impulse withstand voltage (Uimp): 8kV
Frequency: 50/60Hz
Max operations/hour: 1800
Mechanical life: 12 million cycles
Electrical life: 2 million cycles
Dimensions (W×H×D): 45 × 73.5 × 96.6 mm
Weight: ~0.41 kg
Terminal type: Screw clamp
Optional accessories: UA-2 / UA-4 auxiliary contacts, MT-32 thermal relay
Technical Specs

Code: 07.00044

Availability: Available

44.94€

/ Item

Wishlist

Compare products

Description

The MC-40a by LG Metasol is a 3-pole industrial power contactor rated for 18.5kW at 380/440V, featuring 2NO+2NC contacts suitable for control and automation systems. Designed for demanding applications, it supports up to 40A thermal current, with 690V operational and 1000V insulation voltage, and a withstand impulse voltage of 8kV.

It offers up to 1800 operations per hour, with a mechanical life of 12 million and electrical life of 2 million cycles. The unit supports modular accessories including UA-2 or UA-4 front-mounted auxiliary blocks and the MT-32 thermal relay, ensuring a flexible and reliable solution for motor control panels and heavy-duty switching tasks.
