CONTACTOR 3P 22KW 230VAC 2NO2NC MC-50a METASOL LG

Type: Power contactor
Poles: 3
AC3 power: 22kW at 380/440V
Coil voltage: 230VAC
Auxiliary contacts: 2NO2NC
Thermal current (Ith): 50A
Operational voltage (Ue): up to 1000V
Insulation voltage (Ui): 1000V
Impulse withstand voltage (Uimp): 8kV
Frequency: 50/60Hz
Max operations/hour: 1800
Mechanical endurance: 12 million operations
Electrical endurance: 2 million operations
Dimensions (W×H×D): 60 × 83.5 × 121 mm
Weight: ~0.7 kg
Terminal type: Screw clamp
Auxiliary mounting: Side (UA-1), Front (UA-2 / UA-4)

Code: 07.00064

Availability: Available

62.07€

/ Item

Wishlist

Compare products

Description

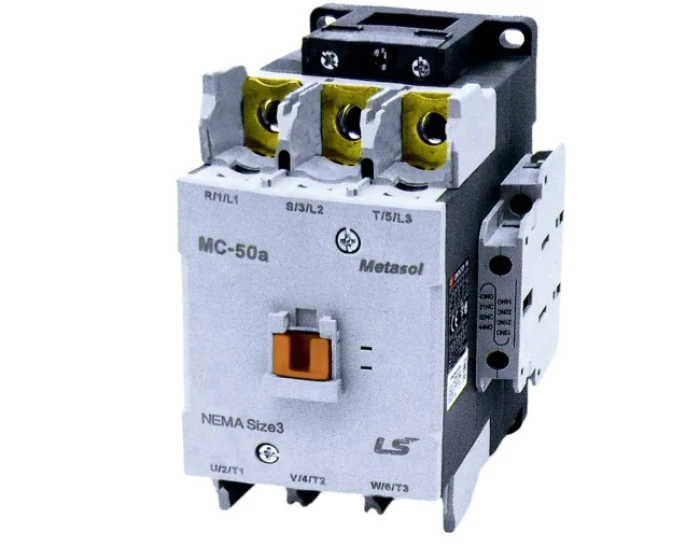

The LG Metasol MC-50a is a 3-pole power contactor designed to control loads up to 22kW at 380/440V, with a thermal current rating of 50A. It operates with a 230VAC coil and comes equipped with 2NO2NC auxiliary contacts, ideal for control and signaling purposes.

This contactor features 8kV impulse withstand, supports up to 1800 operations per hour, and offers exceptional reliability with 12 million mechanical and 2 million electrical operations. Its compact design (60 × 83.5 × 121 mm), screw terminals, and compatibility with both side and front-mounted auxiliaries make it a versatile solution for industrial automation and motor control applications.
