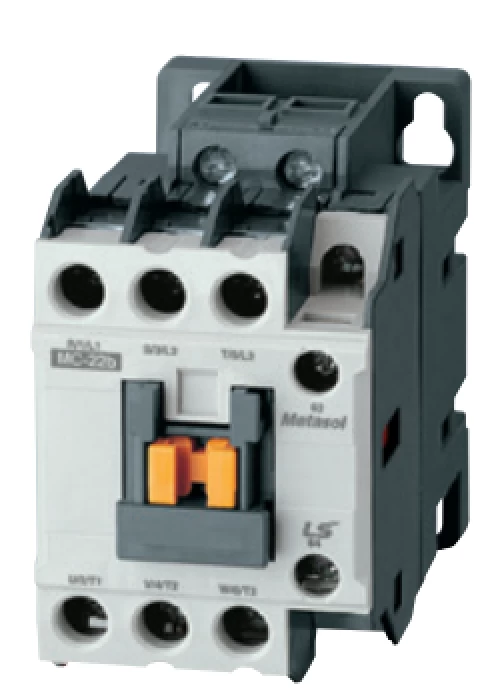

CONTACTOR 3P 4KW 230VAC 1NO1NC MC-9b METASOL LG

  • 3-pole power relay
  • Power: 4kW at 380/440V
  • Contacts: 1NO1NC
  • Thermal current (Ith): 25A
  • Operational voltage (Ue): 690V
  • Insulation voltage (Ui): 690V
  • Impulse withstand voltage: 6kV
  • Frequency: 50/60Hz
  • Max switching frequency: 1800 operations/hour
  • Mechanical life: 15 million operations
  • Electrical life: 2.5 million operations
  • Terminal type: Screw clamp terminals
  • Dimensions: 45 × 73.5 × 96.6 mm
  • Weight: 0.4 kg
  • Technical Specs
Code: 07.00037
Availability: Available
13.79€
/ Item

Share

Description

The MC-9b by Metasol (LG) is a 3-pole power relay designed for compact and efficient performance in light industrial applications. It supports a power output of 4kW at 380/440V and is equipped with 1NO1NC auxiliary contacts. With a thermal current rating of 25A and a maximum operating voltage of 690V, it ensures safe operation under demanding conditions.

The relay is rated for up to 15 million mechanical and 2.5 million electrical operations, and supports 1800 switching cycles per hour. With its compact dimensions (45×73.5×96.6 mm) and 6kV impulse withstand, the MC-9b is ideal for integration into control panels where space, reliability and durability are critical.
