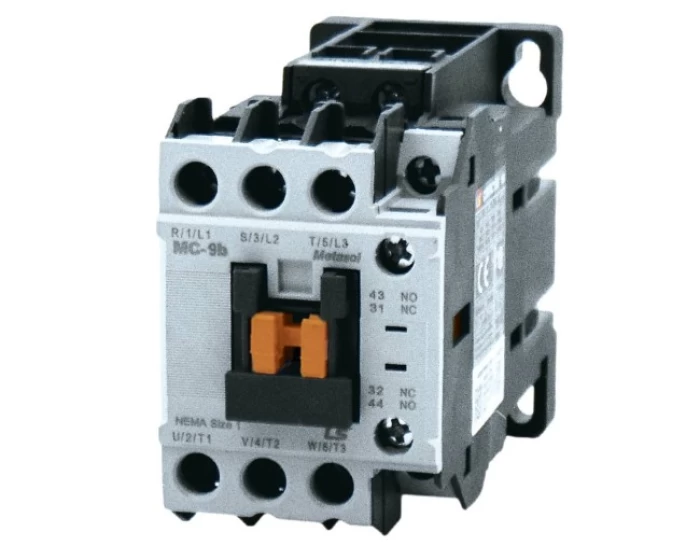

CONTACTOR 3P 4KW 24VAC 1NO1NC MC-9b METASOL LG

Type: Power Contactor
Poles: 3
AC3 Power Rating: 4kW at 380/440V
Coil Voltage: 24VAC
Auxiliary Contacts: 1NO1NC
Thermal Current (Ith): 25A
Rated AC3 Current: 9A
Rated Operational Voltage (Ue): up to 690V
Insulation Voltage (Ui): 690V
Impulse Withstand Voltage (Uimp): 6kV
Frequency: 50/60Hz
Max Operating Frequency (AC3): 1800 operations/hour
Mechanical Life: 15 million operations
Electrical Life: 2.5 million operations
Dimensions (W×H×D): 45 × 73.5 × 80.4 mm
Weight: 0.33 kg
Terminal Type: Screw clamp
Auxiliary Mounting Options: Side (UA-1), Front (UA-2, UA-4)

Code: 07.00061

Availability: Available

13.79€

/ Item

Wishlist

Compare products

Description

The LG MC-9b is a 3-pole power contactor designed for medium-duty applications, with a rated power of 4kW at 380/440V. It operates with a 24VAC coil and includes 1NO1NC auxiliary contacts for flexible control integration.

With a thermal current of 25A, 9A AC3 rating, and 6kV impulse withstand, the MC-9b provides high durability with up to 15 million mechanical and 2.5 million electrical operations. Its compact 45 × 73.5 × 80.4 mm size and screw terminals make it an excellent solution for panels and industrial automation systems requiring reliable switching performance.
