CONTACTOR MINI 3P 5.5KW 230VAC 1ΝΟ GMC-12M METAMEC LG

Type: Miniature power contactor
Poles: 3
AC3 Power Rating: 5.5kW at 380/440V
Coil Voltage: 230VAC
Auxiliary Contacts: 1NO
Thermal Current (Ith): 20A
Rated AC3 Current: 12A
Rated Operational Voltage (Ue): up to 690V
Insulation Voltage (Ui): 690V
Impulse Withstand Voltage (Uimp): 6kV
Frequency: 50/60Hz
Max Switching Frequency: 1800 operations/hour
Mechanical Life: 15 million operations
Electrical Life: 2.5 million operations
Dimensions (W×H×D): 45 × 73.5 × 80.4 mm
Weight: 0.33 kg
Terminal Type: Screw clamp
Auxiliary Options: Side (UA-1M), Front (UA-2M, UA-4M)

Code: 07.00062

Availability: Available

14.89€

/ Item

Wishlist

Compare products

Description

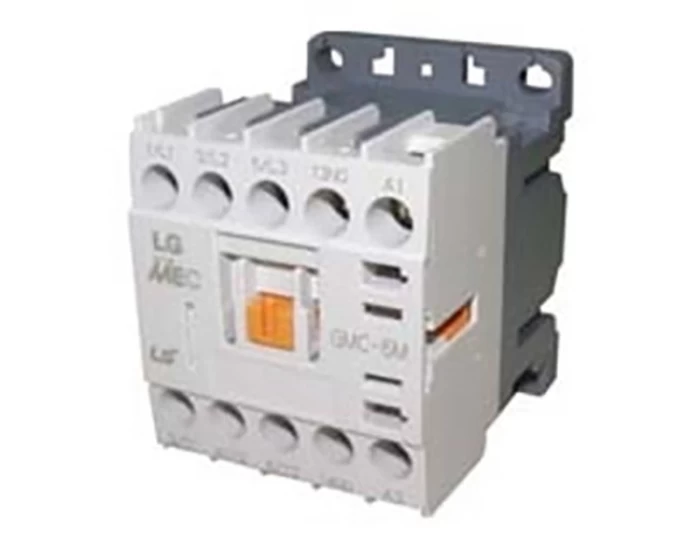

The LG GMC-12M is a compact 3-pole mini contactor capable of switching up to 5.5kW at 380/440V, designed for limited-space control panels and automation systems. It operates with a 230VAC coil and includes 1 normally open auxiliary contact (1NO).

With a thermal current of 20A, this contactor supports 12A in AC3 applications, has a 6kV impulse withstand rating, and allows up to 1800 operations per hour. Built for long service life, it delivers 15 million mechanical and 2.5 million electrical operations. The compact 45 mm width and screw terminals ensure easy installation in industrial setups.
