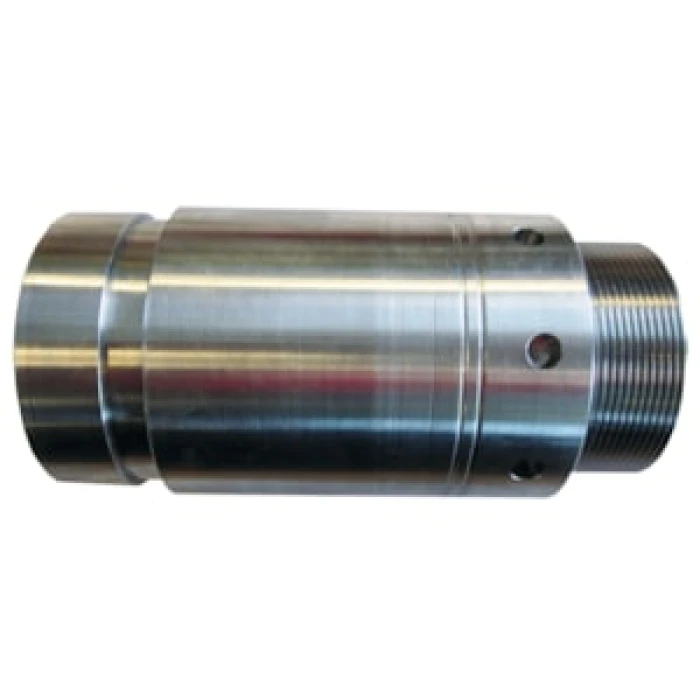

DANFOSS CHECK VALVE VCM 22 - M52 TO 2'' VIC - 180H0256

The Danfoss VCM 22 (180H0256) is a high-pressure non-return check valve intended for desalination systems. It permits flow in one direction and helps protect the installation against reverse flow.

This version has an M52 x 1.5 threaded inlet and a 2-inch Victaulic outlet. It is rated for 22 m³/h flow, a maximum operating pressure of 80 barg and an opening pressure of 0.3 barg. The body is made from Super Duplex stainless steel grade 1.4410.

Technical specifications

• Product type: VCM 22 non-return check valve
• Manufacturer: Danfoss
• Danfoss code: 180H0256
• Aqua code: 10.00035
• Inlet connection: M52 x 1.5
• Outlet connection: 2″ Victaulic
• Rated flow: 22 m³/h
• Opening pressure: 0.3 barg
• Maximum operating pressure: 80 barg
• Pressure loss at rated flow: 0.5 barg
• Material: Super Duplex 1.4410
• Net weight: 1.505 kg
• Gross weight: 2.090 kg
• EAN (European Article Number) barcode: 5715162672143

Official manufacturer specifications – Danfoss
