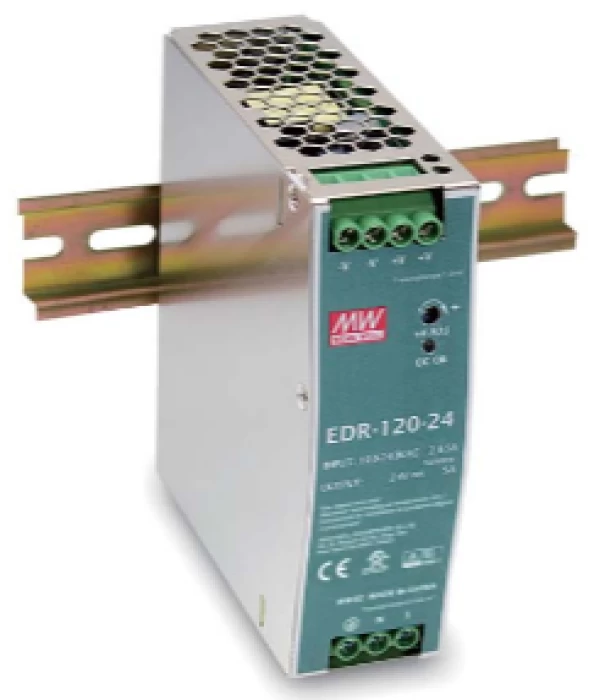

DIN RAIL POWER SUPPLY 120W/24VDC/5A SLIM EDR-120-24 MEAN WELL
- Output Voltage: 24V DC
- Output Current: 5A
- Output Power: 120W
- Output Voltage Adjustment Range: 24 – 28V
- Ripple & Noise: 120mVp-p
- Voltage Tolerance: ±1%
- Line / Load Regulation: ±0.5%
- Input Voltage Range: 90 – 264VAC / 127 – 370VDC
- Frequency Range: 47 – 63Hz
- Input Current (Typ.): 2.25A / 115VAC, 1.3A / 230VAC
- Inrush Current (Typ.): 20A / 115VAC, 35A / 230VAC
- Efficiency (Typ.): 88.5%
- No Load Power Consumption: <1mA / 240VAC
- Setup / Rise Time: 1200ms / 60ms @ 230VAC
- Hold-up Time: 16ms @ 230VAC, 10ms @ 115VAC
- Protections:
- Overload: 105 – 130% (constant current, auto recovery)
- Overvoltage: 29 – 33V (shutdown, re-power to recover)
- Overtemperature: Yes (shutdown and auto restart)
- Vibration Resistance: 2G, 10–500Hz, 60min per X, Y, Z axis
- Operating Temperature: -20°C to +60°C
- Operating Humidity: 20% – 95% RH non-condensing
- EMC Compliance: EN55032 Class A, EN61000-6-2 (heavy industrial level)
- MTBF: 2,718,300 hours (Telcordia SR-332)
- Dimensions: 40 x 125.2 x 113.5 mm
- Weight: 0.6 kg
- Mounting: DIN Rail TS35/7.5 or TS35/15
- Certifications: UL508, TUV EN62368-1, BSMI, BIS, EAC TP TC 004
- Technical Specs
Code:
07.00020
Availability:
Available
33.90€
/ Item
