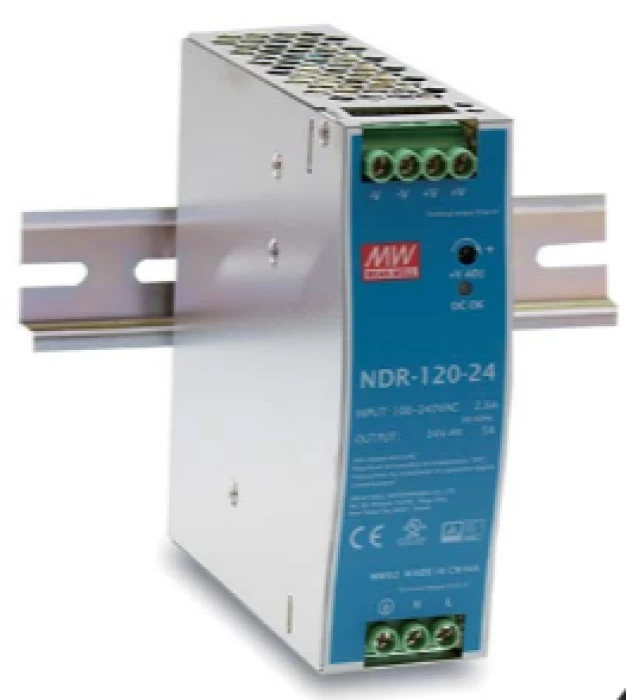

DIN RAIL POWER SUPPLY 120W/24VDC/5A SLIM NDR-120-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 5A
Output Power: 120W
Voltage Adjustment Range: 24 – 28V
Voltage Tolerance: ±1.0%
Line / Load Regulation: ±0.5%
Ripple & Noise: 120mVp-p
Input Voltage Range: 90 – 264VAC / 127 – 370VDC
Frequency Range: 47 – 63Hz
Efficiency (typ.): 88%
Inrush Current: 20A / 115VAC, 35A / 230VAC
No Load Power Consumption: <1mA / 240VAC
Setup / Rise Time: 1200ms / 60ms @ 230VAC
Hold-up Time: 16ms @ 230VAC, 10ms @ 115VAC
Protections:
- Overload: 105 – 130% (constant current limiting, auto recovery)
- Overvoltage: 29 – 33V (shutdown, re-power to recover)
- Overtemperature: Output shutdown, auto recovery
Operating Temperature: -20°C to +70°C (with derating above 60°C)
Humidity: 20% – 95% RH non-condensing
Vibration Resistance: 2G, 10–500Hz, 60min per axis
MTBF: 2,636,800 hours (Telcordia SR-332)
Dimensions: 40 x 125.2 x 113.5 mm
Weight: 0.6 kg
Mounting: DIN Rail TS35/7.5 or 15
Certifications: UL508, TUV BS EN/EN62368-1, EAC TP TC 004
EMC Compliance: EN55032, EN61204-3, EN61000-6-2 (industrial level)
Technical Specs

Code: 07.00021

Availability: Available

41.80€

/ Item

Wishlist

Compare products

Description

The Mean Well NDR-120-24 is a 120W single output industrial DIN rail power supply delivering 24V DC at 5A. It offers high efficiency (88%), adjustable output voltage (24–28V), and full protection against overload, overvoltage, and overtemperature. Designed for harsh industrial environments, it operates from -20°C to +70°C (with derating) and supports a wide AC/DC input range.

Its compact housing and fanless design make it suitable for control panels and automation systems. Certified under UL508, EN62368-1, and EAC, and compliant with EMC industrial standards, the NDR-120-24 is a robust and reliable solution for industrial automation, LED systems, and process control.
