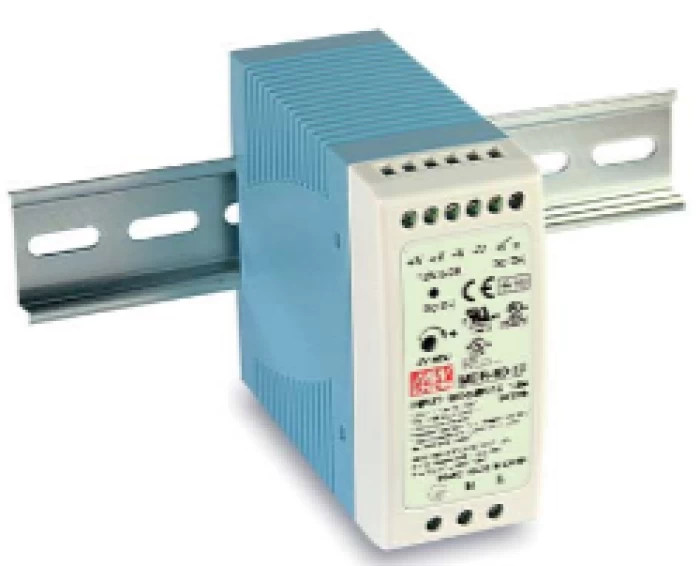

DIN RAIL POWER SUPPLY 60W/24VDC/2.5A PFC ULTRA SLIM MDR-60-24 MEAN WELL

Output Voltage: 24V DC
Output Current: 2.5A
Output Power: 60W
Input Voltage Range: 85 – 264V AC / 120 – 370V DC
Efficiency: Up to 87%
Output Voltage Adjustment: 24 – 30V
Line Regulation: ±1%
Load Regulation: ±1%
Ripple & Noise: 150mVp-p
Setup Time: 500ms / 230VAC, 30ms / 115VAC
Hold-up Time: 50ms / 230VAC, 20ms / 115VAC
Protections: Overload (105–150%), Overvoltage (31.2–36V), Short Circuit
Protection Mode: Constant current limiting with auto recovery
DC OK Relay Contact: 30V / 1A resistive
Cooling: Free air convection
Operating Temperature: -20°C to +70°C
Dimensions: 40 x 90 x 100 mm (W x H x D)
Weight: 0.33 kg
Mounting: DIN rail TS35/7.5 or 15
MTBF: 2,355,200 hours (Telcordia SR-332)
Certifications: UL508, UL62368-1, TUV EN62368-1, BSMI, EAC TP TC 004
EMC Compliance: EN55032 Class B, EN61000-6-2 (industrial level)
Technical Specs

Code: 07.00017

Availability: Available

24.51€

/ Item

Wishlist

Compare products

Description

The Mean Well MDR-60-24 is a compact industrial DIN rail power supply delivering 60W at 24V DC and 2.5A output. Featuring high efficiency (87%) and a wide input voltage range (85–264VAC or 120–370VDC), it ensures reliable operation for automation and control systems. Its output is adjustable from 24 to 30V, and the unit includes full protection against overload, overvoltage, and short circuit with automatic recovery.

A DC OK relay contact (30V/1A resistive) allows for remote status monitoring. The device is cooled via natural convection and operates across a wide temperature range from -20°C to +70°C. With international safety and EMC certifications for industrial use, the MDR-60-24 is an ideal choice for demanding electrical control panels and automation systems.
