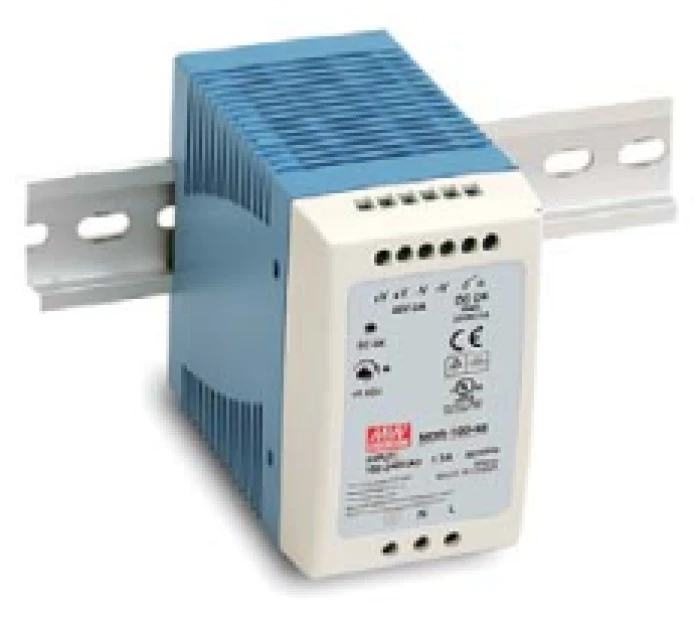

DIN RAIL POWER SUPPLY 96W/24VDC/4A PFC ULTRA SLIM MDR-100-24 MEAN WELL
- Output Voltage: 24V DC
- Output Current: 4A
- Output Power: 96W
- Adjustment Range: 24 – 30V
- Voltage Tolerance: ±1.0%
- Line / Load Regulation: ±1.0%
- Ripple & Noise: 150mVp-p
- Input Voltage Range: 85 – 264VAC / 120 – 370VDC
- Frequency Range: 47 – 63Hz
- Efficiency (typical): 86%
- Input Current: 1.3A / 115VAC, 0.8A / 230VAC
- Inrush Current: 30A / 115VAC, 60A / 230VAC
- Setup / Rise Time: 3000ms, 50ms / 230VAC; 3000ms, 50ms / 115VAC
- Hold-up Time: 50ms / 230VAC; 20ms / 115VAC
- Protections:
- Overload: 105 – 150% (constant current limiting, auto recovery)
- Overvoltage: 31.2 – 36V (shut down, re-power to recover)
- Short circuit
- Operating Temperature: -10°C to +60°C (with derating)
- Humidity: 20% – 90% RH non-condensing
- Cooling: Free air convection
- Dimensions: 55 x 90 x 100 mm
- Weight: 0.42 kg
- MTBF: 2,217,800 hours (Telcordia SR-332)
- Certifications: UL508, TUV EN/BS EN62368-1, BSMI, EAC TP TC 004, CNS15598-1, AS/NZS 60950.1
- EMC Compliance: EN55032 class B, EN61204-3, EN61000-3-2, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11
- Technical Specs
Code:
07.00032
Availability:
Available
42.61€
/ Item
