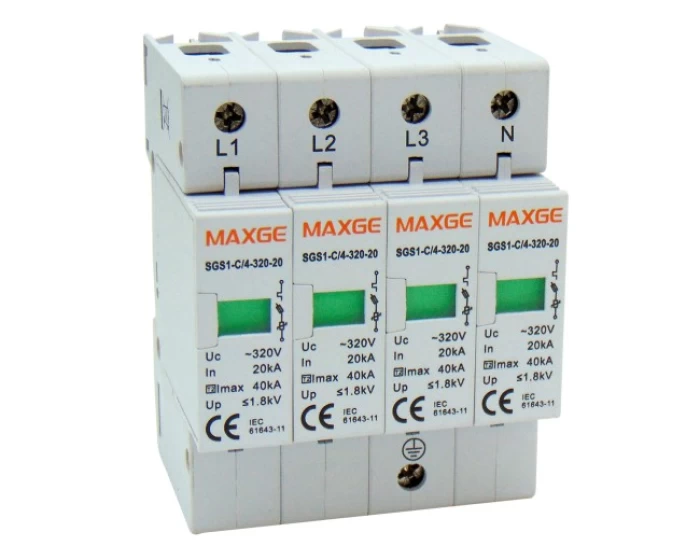

DIN RAIL SURGE PROTECTORS T2 4P 40kA 230VAC SGS1 MAXGE
- Device type: DIN rail mounted Surge Protective Device (SPD)
- Protection category: Type 2
- Number of poles: 4P (3 phases + neutral)
- Rated operational voltage (Un): 230/400VAC
- Maximum continuous operating voltage (Uc): 320V
- Nominal discharge current (In): 20kA (8/20μs)
- Maximum discharge current (Imax): 40kA (8/20μs)
- Voltage protection level (Up): ≤1.5kV
- Response time: <25ns
- Status indicator: Green (active), Red (inactive)
- Terminal type: Screw terminals
- Conductor cross-section:
- Solid: 1–6 mm²
- Flexible: 0.75–4 mm²
- Mounting: DIN rail 35mm
- Width: 72 mm (4 modules)
- Operating temperature: -5°C to +45°C
- Protection degree: IP20
- Standards compliance: IEC 61643-1
- Applicable grounding systems: TT, TN-S, TN-C-S
Code:
07.00086
Availability:
Available
36.02€
/ Item
