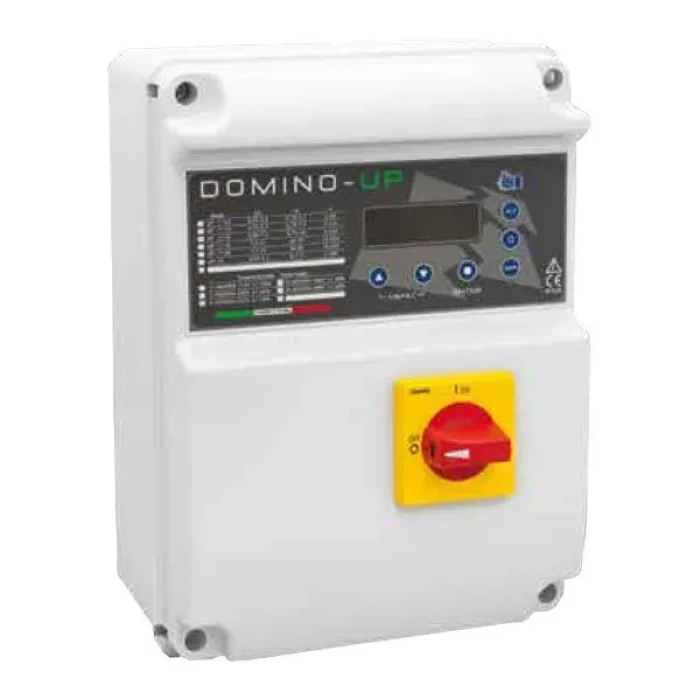

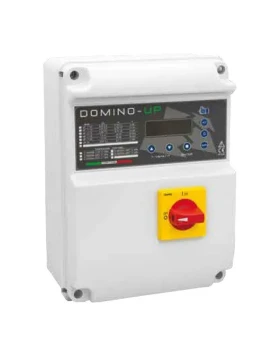

DOMINO-UP-T 10HP 380V ELECTRONIC CONTROL PANEL

The DOMINO-UP-T 10HP 380V control panel is designed for the complete control and protection of three-phase electric pumps used in borehole, centrifugal and water transfer applications. It supports motors up to 10 HP (7.5 kW) and operates on a three-phase 380–400 V power supply. The panel provides advanced motor protection against dry running through cosφ and minimum current monitoring, as well as overload, over-voltage, under-voltage and phase sequence faults. All operating parameters and alarms are clearly displayed on the integrated screen.

The control panel features AUTO / OFF / MANUAL operating modes, allowing flexible operation and automatic restart after dry-run conditions when enabled. It supports direct connection of pressure switches or float switches without the need for external level sensors. With its robust enclosure, clear LED indications and user-friendly keypad, the DOMINO-UP-T 10HP offers a reliable and professional solution for pump protection and management in demanding water supply and borehole installations.
