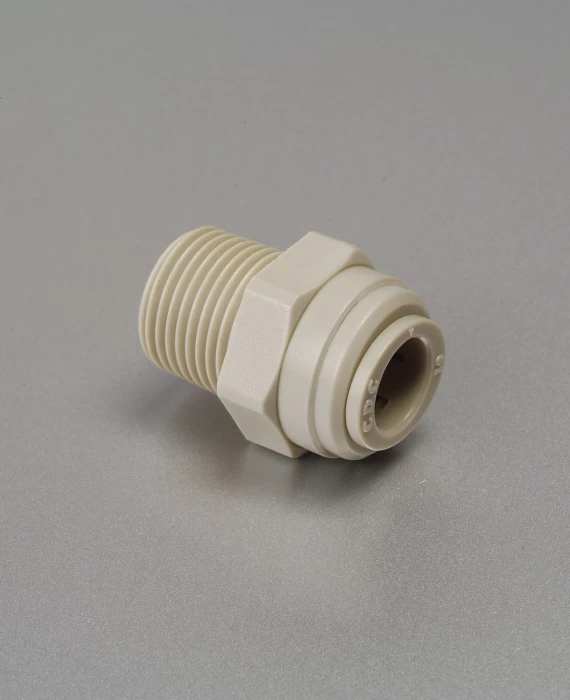

MALE CONNECTOR THREAD 1/8 NPT, TUBE SIZE 5/16 - HPC5/16-N01G

Product Type: Straight male connector
Connection Dimensions: Male NPTF (American dryseal tapered pipe thread) 1/8" thread, Ø5/16" outer tube diameter
Color: Grey
Material: High-quality acetal plastic POM (polyoxymethylene)
Connection Mechanism: Push-to-connect for the tubing, male thread for the base
Operating Pressure: Up to 150 psi (pounds per square inch), approximately 10.3 bar, subject to the manufacturer's temperature and tubing limits
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, pneumatic networks, low-pressure auxiliary desalination circuits, food and beverage equipment

Code: 01.00310

Availability: Available

Minimum quantity: 2 items

1.53€

/ Item

Wishlist

Compare products

Description

The HPC5/16-N01G is a Fluid-fit straight male connector designed for tubing with an outer diameter of Ø5/16". It features a male NPTF (American dryseal tapered pipe thread) 1/8" thread and an in-line configuration, allowing the tubing to connect directly to equipment or a fitting with a compatible female port.

Made from high-quality acetal plastic POM (polyoxymethylene), it incorporates EPDM (ethylene propylene diene monomer rubber) sealing. The Push-to-connect mechanism enables quick tube insertion without tools at the push-fit connection, while the male thread connects the fitting to the base.

The operating temperature range is 0°C to +65°C, with a pressure ceiling of up to 10.3 bar under suitable conditions. The allowable pressure is not the same at every temperature and must be checked against the manufacturer's table and the limits of the connected tubing. Disconnect only after the line has been fully depressurized. Subject to media compatibility and operating conditions, applications include:
