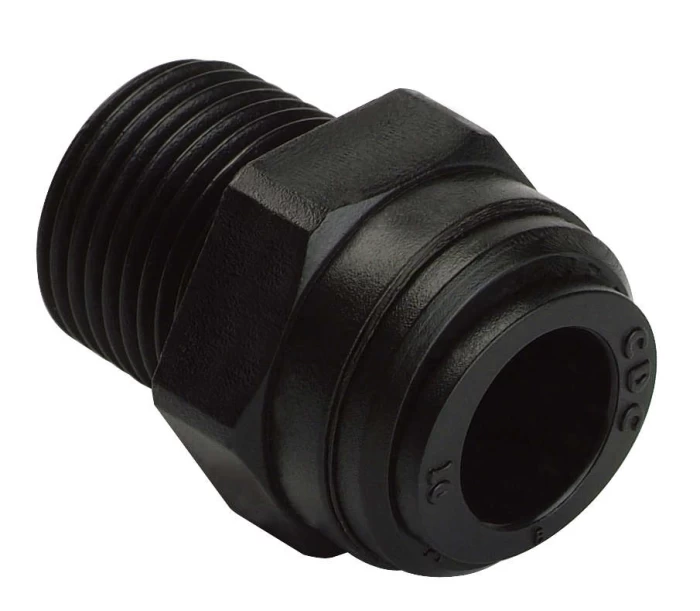

MALE CONNECTOR THREAD R1/2 , TUBE SIZE OD8, BLACK - HPC08G04B

Product Type: Straight male threaded push-fit connector
Connection Dimensions: Male thread G1/2 and one socket for Ø8 mm outside-diameter tubing
Thread Type: BSPP (British Standard Pipe Parallel)
Color: Black
Material: High-quality acetal plastic POM (polyoxymethylene)
Connection Mechanism: Threaded connection and push-to-connect at the tube socket
Operating Pressure: Up to 150 psi (pounds per square inch), approximately 10.3 bar, subject to the manufacturer’s size, temperature and tubing limits
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, pneumatic circuits, auxiliary low-pressure desalination circuits, food and beverage equipment

Code: 01.00524

Availability: Available

1.75€

/ Item

Wishlist

Compare products

Description

The HPC08G04B is a Fluid-fit straight male threaded push-fit connector, with a male G1/2 – BSPP (British Standard Pipe Parallel) thread and a socket for Ø8 mm outside-diameter tubing. Its straight arrangement connects the tube line to a matching female threaded port.

The body is made from acetal plastic POM (polyoxymethylene), with tube-socket seals made from EPDM (ethylene propylene diene monomer rubber). The push-to-connect arrangement simplifies tube installation. The threaded side requires a matching thread type and size, suitable sealing, and compliance with the manufacturer’s tightening limits.

The operating range is 0°C to +65°C. The published maximum ceiling of 10.3 bar does not apply regardless of size and temperature: allowable pressure must follow the manufacturer’s rating table and the connected tubing limits. Disconnect only after the circuit has been fully depressurised. Depending on fluid compatibility and operating conditions, applications include:
