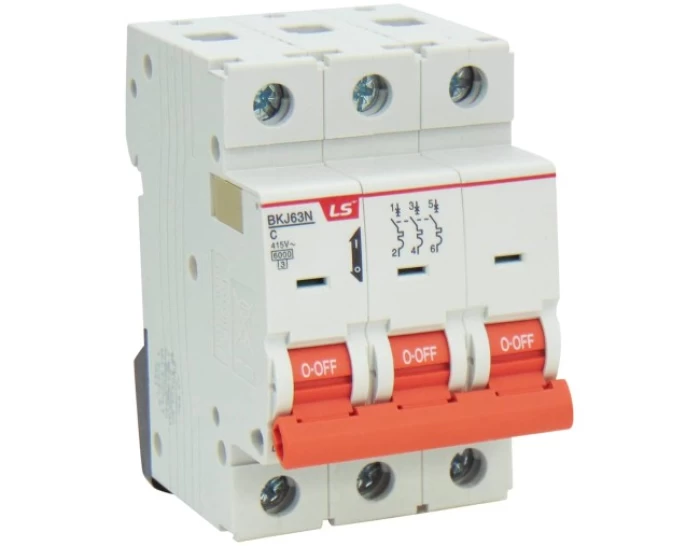

MINIATURE CIRCUIT BREAKER 3P C 16A 6kA 415VAC BKJ63N LG

Type: Miniature circuit breaker (MCB)
Protection: Overload and short circuit
Tripping curve: C
Poles: 3P
Rated current (In): 16A
Breaking capacity (Icn): 6kA
Rated voltage: 415VAC
Frequency: 50/60Hz
Protection class: IP20 (installed)
Mechanical life: ≥20,000 operations
Electrical life: ≥10,000 operations
Mounting type: DIN rail 35mm
Width: 54 mm (3 modules)
Terminal type: Screw clamp (top and bottom)
Compliance: IEC 60898-1, EN 60898

Code: 07.00075

Availability: Available

10.02€

/ Item

Wishlist

Compare products

Description

The LG BKJ63N 3P C 16A miniature circuit breaker is designed for protecting three-phase circuits from overloads and short circuits. With a C tripping curve and a 6kA breaking capacity, it ensures safe and effective disconnection under fault conditions.

Its compact 54mm width and DIN rail compatibility allow for easy integration into distribution boards. Compliant with IEC standards and built for durability, it is a reliable solution for residential and commercial electrical systems.
