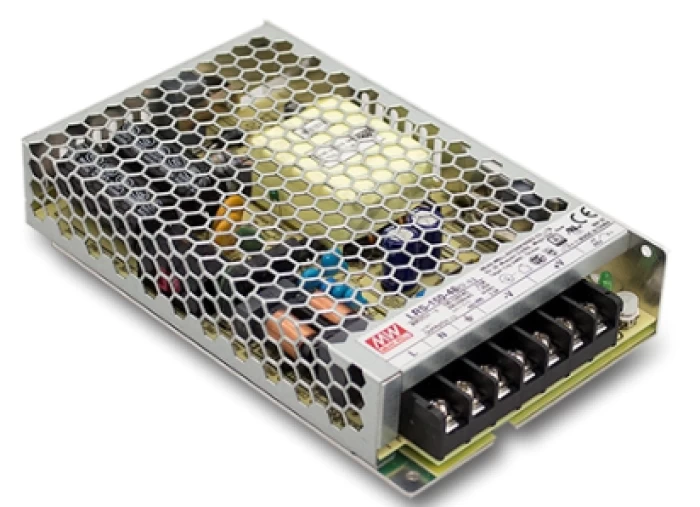

POWER SUPPLY 150W/12VDC/12.5A ULTRA MINI LRS-150-12 MEAN WELL
- Output Voltage: 12V DC
- Output Current: 12.5A
- Output Power: 150W
- Adjustment Range: 10.2 – 13.8V
- Voltage Tolerance: ±1.0%
- Line / Load Regulation: ±0.5%
- Ripple & Noise: 150mVp-p
- Input Voltage Range: 85 – 132VAC / 170 – 264VAC (selectable by switch)
- Frequency Range: 47 – 63Hz
- Efficiency (typical): 87.5%
- Input Current: 3A / 115VAC, 1.7A / 230VAC
- Inrush Current: 60A / 230VAC
- No Load Power Consumption: <0.5W
- Setup / Rise Time: 500ms, 30ms @ 230VAC
- Hold-up Time: 40ms @ 230VAC, 35ms @ 115VAC
- Protections:
- Overload: 110 – 140% (hiccup mode, auto recovery)
- Overvoltage: 13.8 – 16.2V (shut down, re-power to recover)
- Overtemperature: Output shut down, auto recovery
- Short circuit
- Operating Temperature: -30°C to +70°C (with derating)
- Humidity: 20% – 90% RH non-condensing
- Cooling: Free air convection
- Weight: 0.42 kg
- Dimensions: 159 x 97 x 30 mm
- MTBF: 2,707,700 hours (Telcordia SR-332)
- Certifications: UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16, GB4943.1, BSMI, EAC, KC, BIS IS13252, AS/NZS 62368-1
- EMC Compliance: EN55032 class B, EN61000-3-2, EN61000-6-2
- Technical Specs
Code:
07.00029
Availability:
Available
23.28€
/ Item
