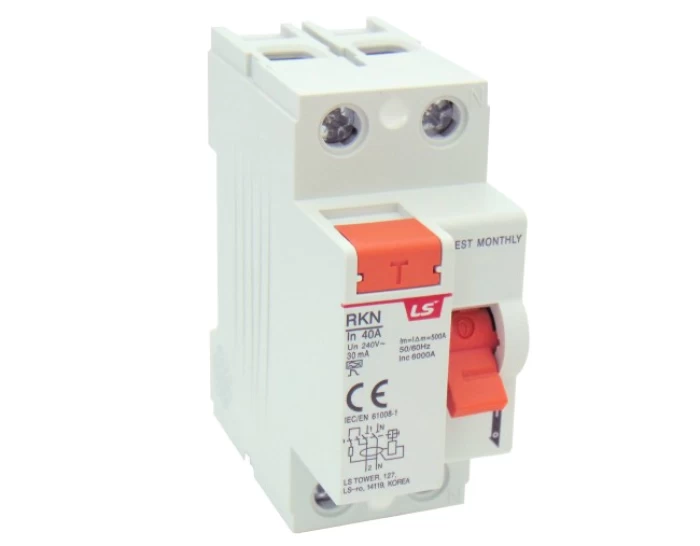

RCCB 2P 40A 30mA TYPE A RKN LG

Device type: Residual current circuit breaker (RCCB)
Brand / Series: LG Metasol – RKN
Poles: 2P
Rated current (In): 40A
Rated voltage (Ue): 240/415VAC
Leakage type: Type A (AC + pulsating DC detection)
Residual sensitivity: 30mA
Trip time at IΔn: ≤ 0.1s
Breaking capacity (Icn): 6kA
Isolation function: Yes
Impulse withstand voltage (Uimp): 6kV
Standard compliance: IEC/EN 61008-1
Terminal capacity: Up to 25mm² cable
Applications: Residential and industrial panel protection
Technical Specs

Code: 07.00040

Availability: Available

25.92€

/ Item

Wishlist

Compare products

Description

The LG Metasol RKN 2P 40A 30mA Type A is a two-pole residual current circuit breaker (RCCB) designed to protect against electric shock and fire hazards due to earth leakage. With a 30mA sensitivity and Type A functionality, it can detect both AC and pulsating DC leakage currents.

Operating at 240/415V, the RKN RCCB features a fast trip time ≤0.1s, 6kV impulse withstand, and 6kA breaking capacity. Compliant with IEC/EN 61008-1, and suitable for cable sizes up to 25mm², it is ideal for distribution boards in residential and commercial installations.
