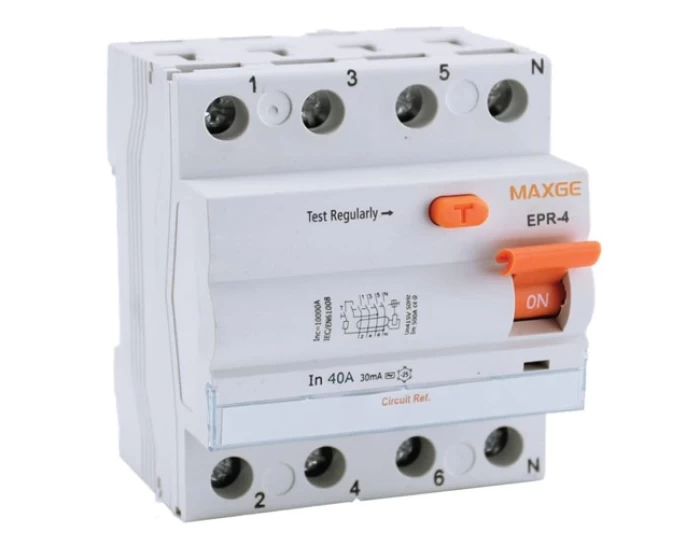

RCCB 4P 40A 30mA TYPE A EPR-4 MAXGE

Device type: Residual Current Device (RCD)
Poles: 4P (3 phases + neutral)
Rated current (In): 40A
Residual operating current (IΔn): 30mA
Leakage type: Type A (AC + pulsating DC)
Rated voltage: 400/230VAC
Frequency: 50/60Hz
Tripping time: ≤ 200ms
Mechanical endurance: ≥10,000 operations
Electrical endurance: ≥4,000 operations
Mounting: DIN rail 35mm
Width: 72 mm (4 modules)
Protection degree: IP20
Suitable for: TT, TN-S, TN-C-S systems
Standards compliance: IEC/EN 61008-1

Code: 07.00098

Availability: Available

20.87€

/ Item

Wishlist

Compare products

Description

The EPR-4 4P 40A 30mA Type A RCD by Maxge provides enhanced protection against earth leakage currents of both AC and pulsating DC types, ideal for modern installations using electronics such as inverters or LED lighting.

With 4 poles (3 phases + neutral), 40A rated current, and a DIN rail mountable design with 72mm width, it suits residential and commercial distribution panels. Compliant with IEC/EN 61008-1 and supporting TT, TN-S, and TN-C-S systems, it offers safety, durability, and reliable operation in a compact modular format.
