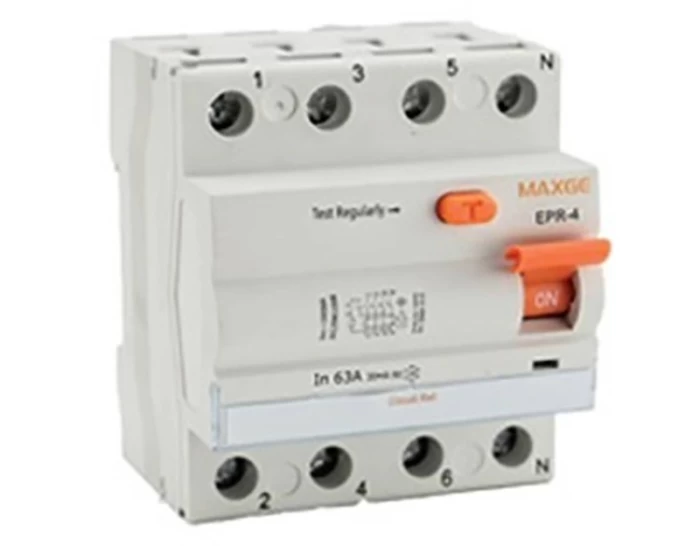

RCCB 4P 40A 30mA TYPE AC EPR-4 MAXGE

  • Device type: Residual Current Device (RCD)
  • Poles: 4P (3 phases + neutral)
  • Rated current (In): 40A
  • Rated residual operating current (IΔn): 30mA
  • Leakage type: AC
  • Rated voltage: 400/230VAC
  • Frequency: 50/60Hz
  • Tripping time: ≤ 200ms
  • Mechanical endurance: ≥10,000 operations
  • Electrical endurance: ≥4,000 operations
  • Width: 72 mm (4 modules)
  • Mounting type: DIN rail 35mm
  • Protection degree: IP20 (installed)
  • Standards compliance: IEC/EN 61008-1
Code: 07.00082
Availability: Available
18.54€
/ Item

Share

Description

The Maxge EPR-4 4P 40A 30mA AC type RCD provides comprehensive protection against earth leakage currents in three-phase systems. With a 4-pole configuration and a sensitivity of 30mA, it ensures disconnection in the event of current leakage, protecting both people and equipment.

It installs easily on a 35mm DIN rail and fits standard electrical panels with a 72mm width. Compliant with IEC/EN 61008-1 standards, it is suitable for residential, commercial, and industrial applications requiring reliable residual current protection.
