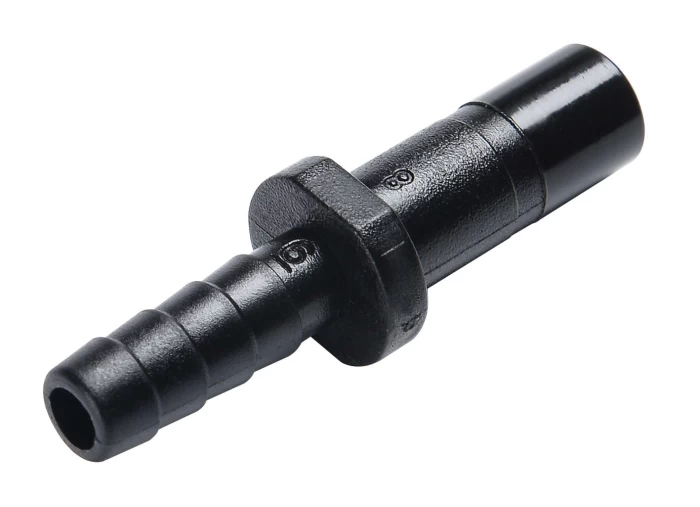

STEM BARB CONNECTOR OD6 - OD6 BLACK - HCJB0606B

Product Type: Straight stem-to-hose-barb connector
Connection Dimensions: Male stem outside diameter Ø6 mm × hose barb for hose inside diameter Ø6 mm
Color: Black
Material: High-quality acetal plastic POM (polyoxymethylene)
Connection Mechanism: Stem insertion into a compatible push-fit socket and hose fitting onto the barb
Operating Pressure: Up to 150 psi (pounds per square inch), approximately 10.3 bar, subject to the manufacturer’s size, temperature and tubing limits
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, pneumatic circuits, auxiliary low-pressure desalination circuits, food and beverage equipment

Code: 01.00442

Availability: Available

Minimum quantity: 2 items

0.86€

/ Item

Wishlist

Compare products

Description

The HCJB0606B is a Fluid-fit straight connector joining a compatible Ø6 mm push-fit socket to a hose with an inside diameter of Ø6 mm. Its straight geometry provides an in-line transition from the socket to the flexible hose.

The fitting is made from acetal plastic POM (polyoxymethylene). Its male stem is inserted into the matching push-fit socket, while the flexible hose fits over the barb. The first size specifies the stem outside diameter and the second the hose inside diameter; these are not two tube sockets. Hose retention must be suitable for the hose material and the application pressure.

The operating range is 0°C to +65°C. The published maximum ceiling of 10.3 bar does not apply regardless of size and temperature: allowable pressure must follow the manufacturer’s rating table and the connected tubing limits. Disconnect only after the circuit has been fully depressurised. Depending on fluid compatibility and operating conditions, applications include:
