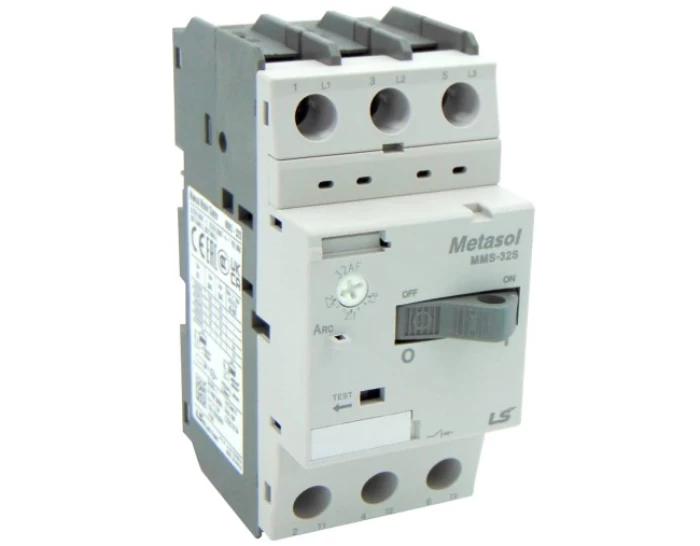

THERMAL-MAGNETIC CIRCUIT BREAKER 1-1.6Α ON-OFF MMS-32S LG

Current setting range: 1 – 1.6A
Poles: 3
Protection type: Thermal-magnetic
Utilization category: AC-3
Breaking category: A (IEC 60947-2)
Operational voltage (Ue): up to 690V
Insulation voltage (Ui): 690V
Impulse withstand voltage (Uimp): 6kV
Frequency: 50/60Hz
Max operations per hour: 25
Electrical & mechanical endurance: 100,000 operations
Short-circuit release: 13 × Ie
Temperature compensation: Yes
Test function: Available
Dimensions (W×H×D): 75 × 130 × 60 mm
Weight: 0.7 kg
Handle type: ON-OFF toggle

Code: 07.00063

Availability: Available

26.75€

/ Item

Wishlist

Compare products

Description

The LG MMS-32S 1–1.6A is a 3-pole thermal magnetic motor protection circuit breaker, designed to protect motors from overload, short-circuit, and phase loss. It offers a current setting range of 1 to 1.6A, complies with IEC 60947-2, and supports temperature compensation for stable operation.

Rated for use up to 690V and 6kV impulse withstand, the breaker provides manual ON-OFF toggle operation, test functionality, and a high endurance of 100,000 mechanical and electrical operations. Compact and reliable, it’s ideal for control panels and industrial systems requiring dependable motor protection.
