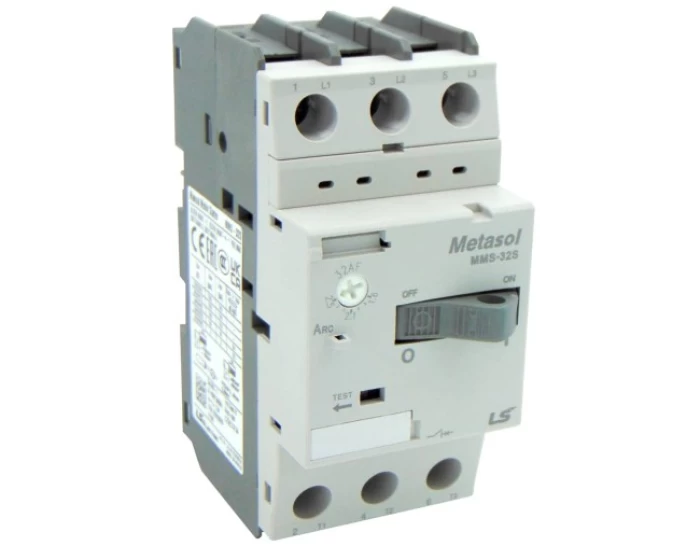

THERMAL-MAGNETIC CIRCUIT BREAKER 1.6-2.5Α ON-OFF MMS-32S LG

Current setting range: 1.6 – 2.5A
Poles: 3
Protection type: Thermal-magnetic
Utilization category: AC-3
Breaking category: A (IEC 60947-2)
Operational voltage (Ue): up to 690V
Insulation voltage (Ui): 690V
Impulse withstand voltage (Uimp): 6kV
Operating temperature: -20°C to +60°C
Temperature compensation: Available
Max switching frequency: 25 operations/hour
Electrical endurance: 100,000 cycles
Mechanical endurance: 100,000 cycles
Instantaneous short-circuit release: 13 × Ie
Test function: Yes
Dimensions (W×H×D): 75 × 130 × 60 mm
Weight: 0.7 kg
Handle type: ON-OFF toggle

Code: 07.00060

Availability: Available

26.75€

/ Item

Wishlist

Compare products

Description

The LG MMS-32S 1.6–2.5A is a 3-pole thermal magnetic motor protection circuit breaker designed to guard motors against overload, short circuit, and phase loss. It features an adjustable current range of 1.6–2.5A, supports temperature compensation, and includes a test function for easy diagnostics.

With a voltage rating up to 690V, 6kV impulse withstand, and 13 × Ie short-circuit release, it ensures dependable operation in harsh industrial environments. The ON-OFF toggle switch, compact size, and screw terminals make it ideal for use in control panels and automation systems where reliability and safety are essential.
