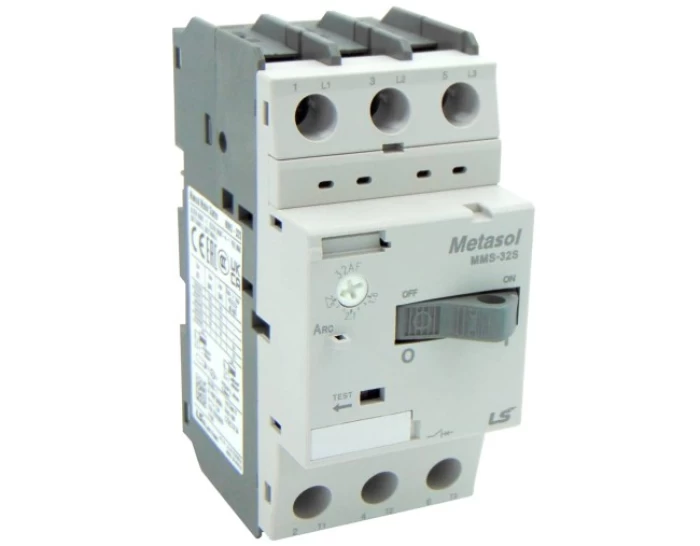

THERMAL-MAGNETIC CIRCUIT BREAKER 2.5-4Α ON-OFF MMS-32S LG

Type: Thermal-magnetic manual motor starter (MMS)
Current adjustment range: 2.5 – 4A
Poles: 3
Operational voltage (Ue): up to 690V
Insulation voltage (Ui): 690V
Impulse withstand voltage (Uimp): 6kV
Frequency: 50/60Hz
Max operation frequency: 25 operations/hour
Utilization category: AC-3 (IEC 60947-4)
Breaking category: Cat. A (IEC 60947-2)
Operating temperature: -20°C to +60°C
Temperature compensation: yes
Mechanical endurance: 100,000 operations
Electrical endurance: 100,000 operations
Instantaneous short-circuit release: 13 × Ie max
Protections: overload, short circuit, phase failure
Test function: included
Frame size: 32AF
Weight: 320g
Handle type: On-Off toggle
Technical specs

Code: 07.00045

Availability: Available

26.75€

/ Item

Wishlist

Compare products

Description

The LG Metasol MMS-32S is a thermal-magnetic motor protection circuit breaker with a current setting range of 2.5 to 4A and 3-pole design. It is engineered for industrial control panels and offers full overload, short circuit, and phase failure protection. With a rated operating voltage of up to 690V, impulse withstand of 6kV, and 13 × Ie short-circuit trip release, it ensures strong performance in demanding environments.

The unit supports up to 25 operations per hour, features both mechanical and electrical durability of 100,000 cycles, and includes temperature compensation and test functionality. With a toggle switch handle, compact 32AF frame, and a weight of just 320g, the MMS-32S is a reliable solution for safeguarding motors in automated and industrial installations.
