THERMAL-MAGNETIC CIRCUIT BREAKER 9-13Α ON-OFF MMS-32S LG

Current setting range: 9 – 13A
Poles: 3
Protection type: Thermal magnetic
Breaking category: Cat. A (IEC 60947-2)
Utilization category: AC-3 (IEC 60947-4)
Operational voltage (Ue): up to 690V
Insulation voltage (Ui): 690V
Impulse withstand voltage (Uimp): 6kV
Breaking capacity: 100% Icu
Operating temperature: -20°C to +60°C
Temperature compensation: yes
Max operation frequency: 25 operations/hour
Electrical endurance: 100,000 cycles
Mechanical endurance: 100,000 cycles
Test function: yes
Dimensions (W×H×D): 75 × 130 × 60 mm
Weight: 0.7 kg
Handle type: On-Off (Toggle)

Code: 07.00050

Availability: Available

27.28€

/ Item

Wishlist

Compare products

Description

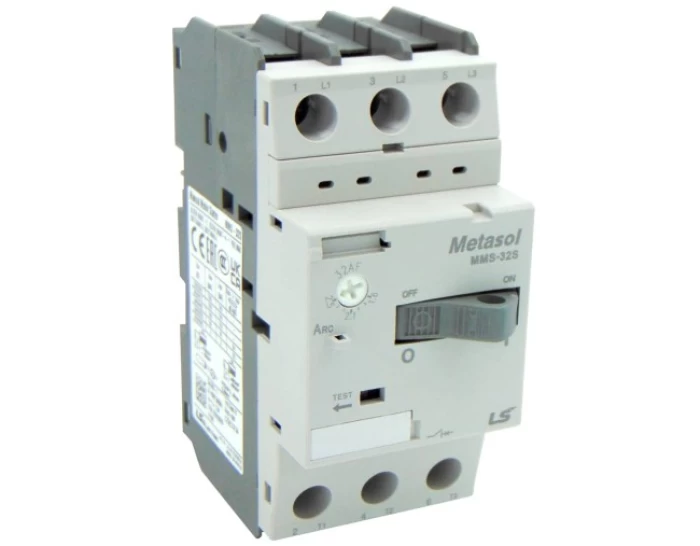

The MMS-32S by LG is a 3-pole thermal magnetic manual motor starter with a current setting range of 9 to 13A, designed for protection against overload, short circuit, and phase failure. Rated up to 690V operational voltage and 6kV impulse withstand, it provides reliable operation in demanding industrial environments.

Certified to IEC 60947-2 and IEC 60947-4 standards, the MMS-32S supports up to 25 operations per hour and ensures 100,000 mechanical and electrical operations. It features a manual toggle On-Off handle, a test button, and temperature compensation, making it ideal for compact and efficient protection in motor control panels.
