THERMAL RELAYS 12-18A MT-32/15 3H SUSOL LG

Current setting range: 12 – 18A
Trip class: 10A
Compatibility: With MC-32a contactors
Operational voltage (Ue): 690V
Insulation voltage (Ui): 690V
Impulse withstand voltage (Uimp): 6kV
Protection type: Overload and phase failure
Terminals: Screw clamp
Dimensions (W×H×D): 45 × 75 × 90 mm
Weight: 0.17 kg
Frequency: 50/60Hz
Reset and test function available
Technical Specs

Code: 07.00046

Availability: Available

16.52€

/ Item

Wishlist

Compare products

Description

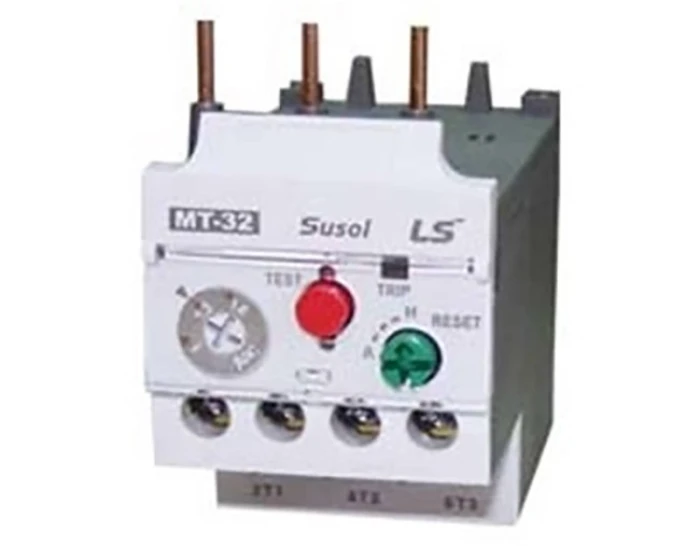

The MT-32/15 3H by LG SUSOL is a thermal overload relay with a current setting range of 12–18A, specifically designed for use with MC-32a contactors. It provides motor protection against overload and phase failure, and operates with trip class 10A. Rated for use at 690V, the relay also withstands impulse voltages up to 6kV.

Featuring a manual reset and test button, it ensures quick diagnostics and reliable protection in industrial systems. The compact design (45 × 75 × 90 mm) and lightweight construction make it ideal for use in control panels. Its screw-type terminals ensure easy installation and secure wiring, supporting high-performance applications in automation and motor control.
