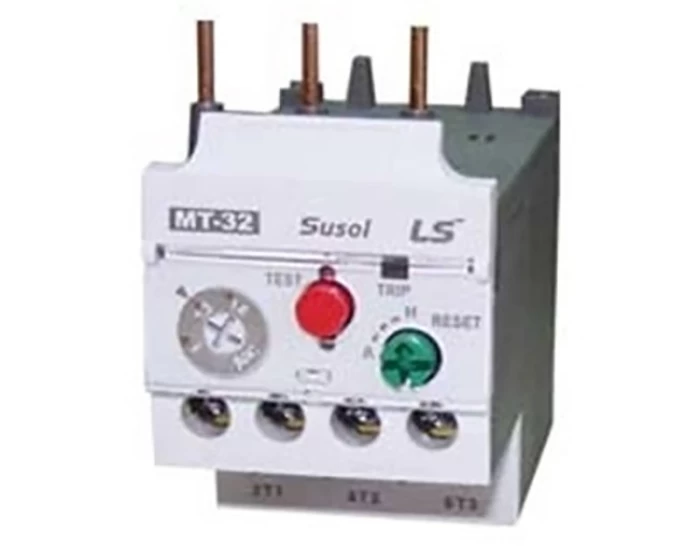

THERMAL RELAYS 4-6A MT-32/5 3H SUSOL LG

Current setting range: 4 – 6A
Trip class: 10A
Compatible with: MC-32a contactors
Operational voltage (Ue): 690V
Insulation voltage (Ui): 690V
Impulse withstand voltage (Uimp): 6kV
Frequency: 50/60Hz
Protection type: Overload and phase failure
Reset method: Manual
Test function: Yes
Terminal type: Screw clamp
Dimensions (W×H×D): 45 × 75 × 90 mm
Weight: 0.17 kg

Code: 07.00052

Availability: Available

16.52€

/ Item

Wishlist

Compare products

Description

The MT-32/5 3H by LG SUSOL is a thermal overload relay designed for protecting electric motors from overload and phase failure, with a current adjustment range of 4–6A. It conforms to trip class 10A and is compatible with MC-32a contactors.

Rated up to 690V with 6kV impulse withstand, the unit features a manual reset, a test button, and durable screw terminals. Its compact size (45 × 75 × 90 mm) and lightweight design (0.17 kg) make it ideal for use in industrial control panels requiring reliable motor protection and easy maintenance.
