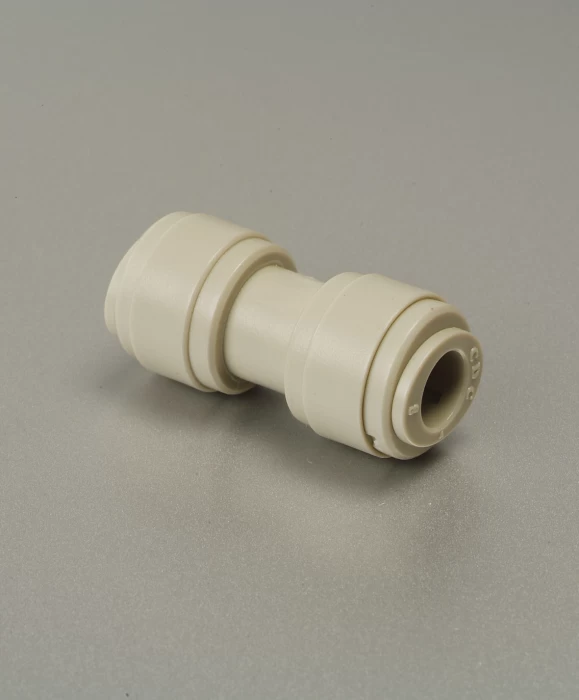

UNION CONNECTOR 5/16-5/16 - HUC5/16-5/16G

Product Type: Straight union connector
Connection Dimensions: Tube outside diameters 5/16 in and 5/16 in
Color: Grey
Material: High-quality acetal plastic POM (polyoxymethylene)
Connection Mechanism: Push-to-connect on both sides
Operating Pressure: Up to 150 psi (pounds per square inch), approximately 10.3 bar, subject to the manufacturer’s size, temperature and tubing limits
Temperature Range: 0°C to +65°C
Applications: Water treatment systems, pneumatic circuits, auxiliary low-pressure desalination circuits, food and beverage equipment

Code: 01.00418

Availability: Available

Minimum quantity: 2 items

2.00€

/ Item

Wishlist

Compare products

Description

The HUC5/16-5/16G is a Fluid-fit straight union connector for joining tubing with outside diameters of 5/16 in and 5/16 in. The two sockets are arranged in line and use the same connection size on both sides.

The body is made from acetal plastic POM (polyoxymethylene), with socket seals made from EPDM (ethylene propylene diene monomer rubber). Push-to-connect sockets allow the tubing to be fitted without tools. Each tube must have a clean, square-cut end and its outside diameter must match the corresponding socket exactly.

The operating range is 0°C to +65°C. The published maximum ceiling of 10.3 bar does not apply regardless of size and temperature: allowable pressure must follow the manufacturer’s rating table and the connected tubing limits. Disconnect only after the circuit has been fully depressurised. Depending on fluid compatibility and operating conditions, applications include:
